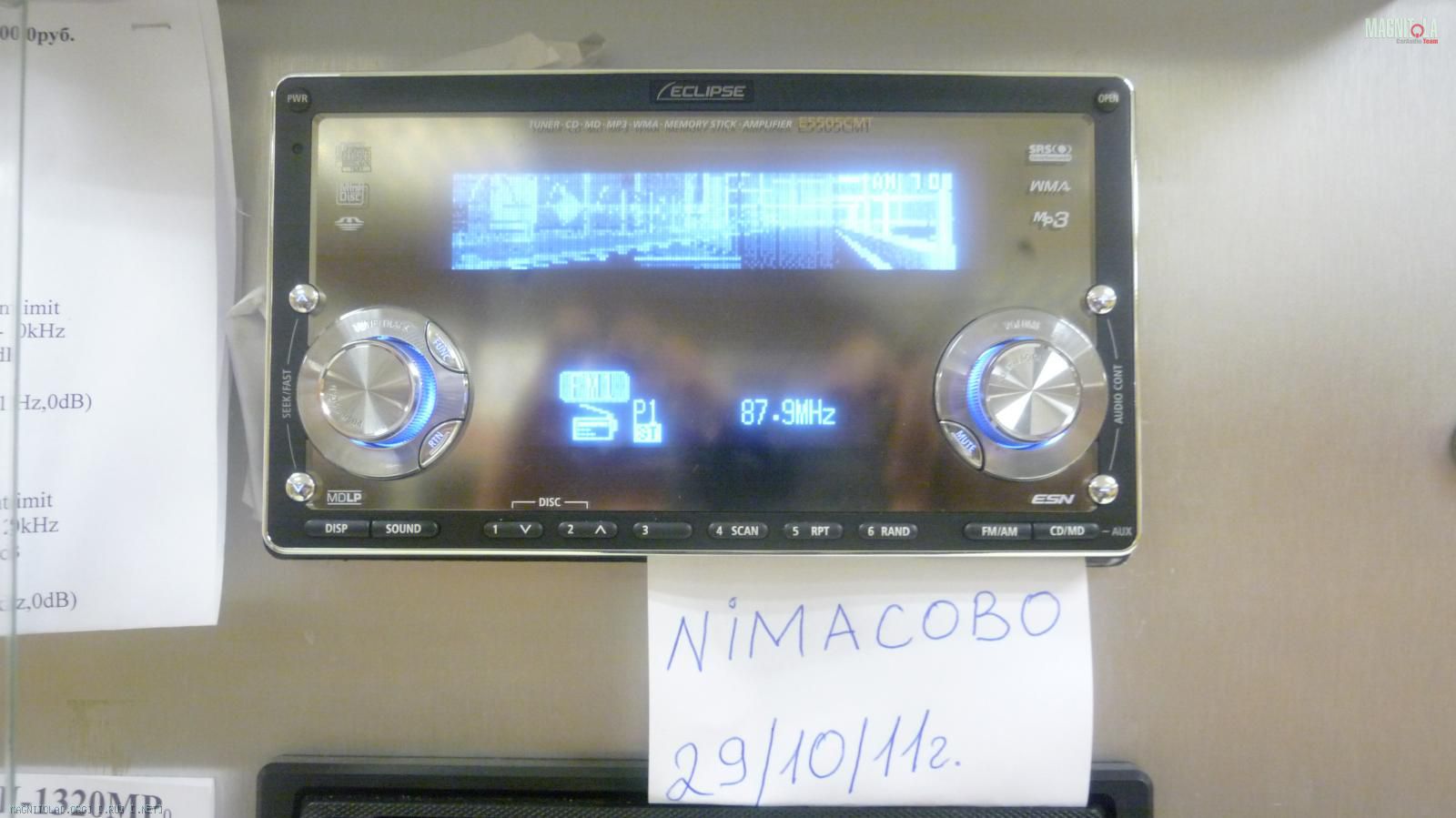

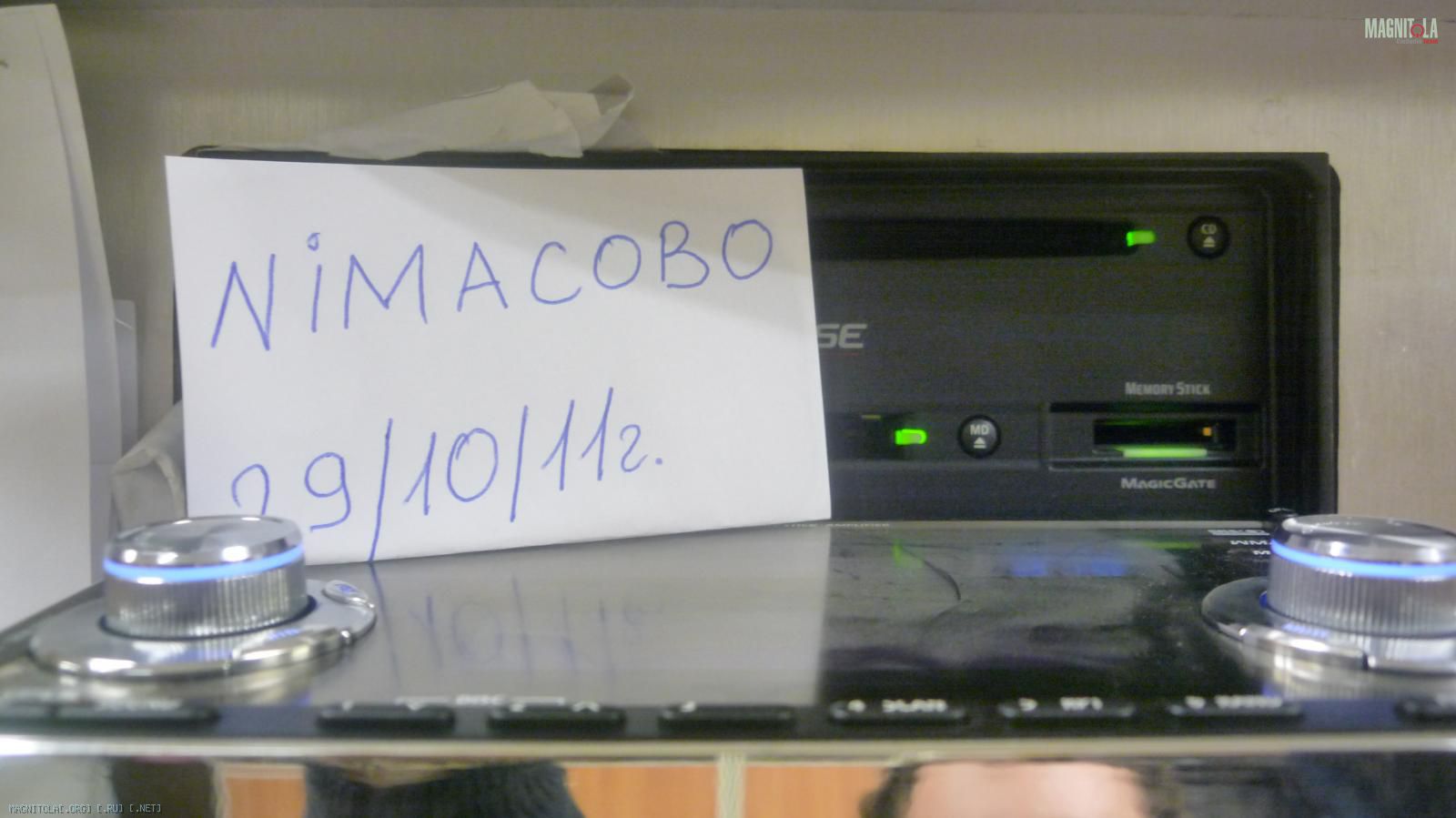

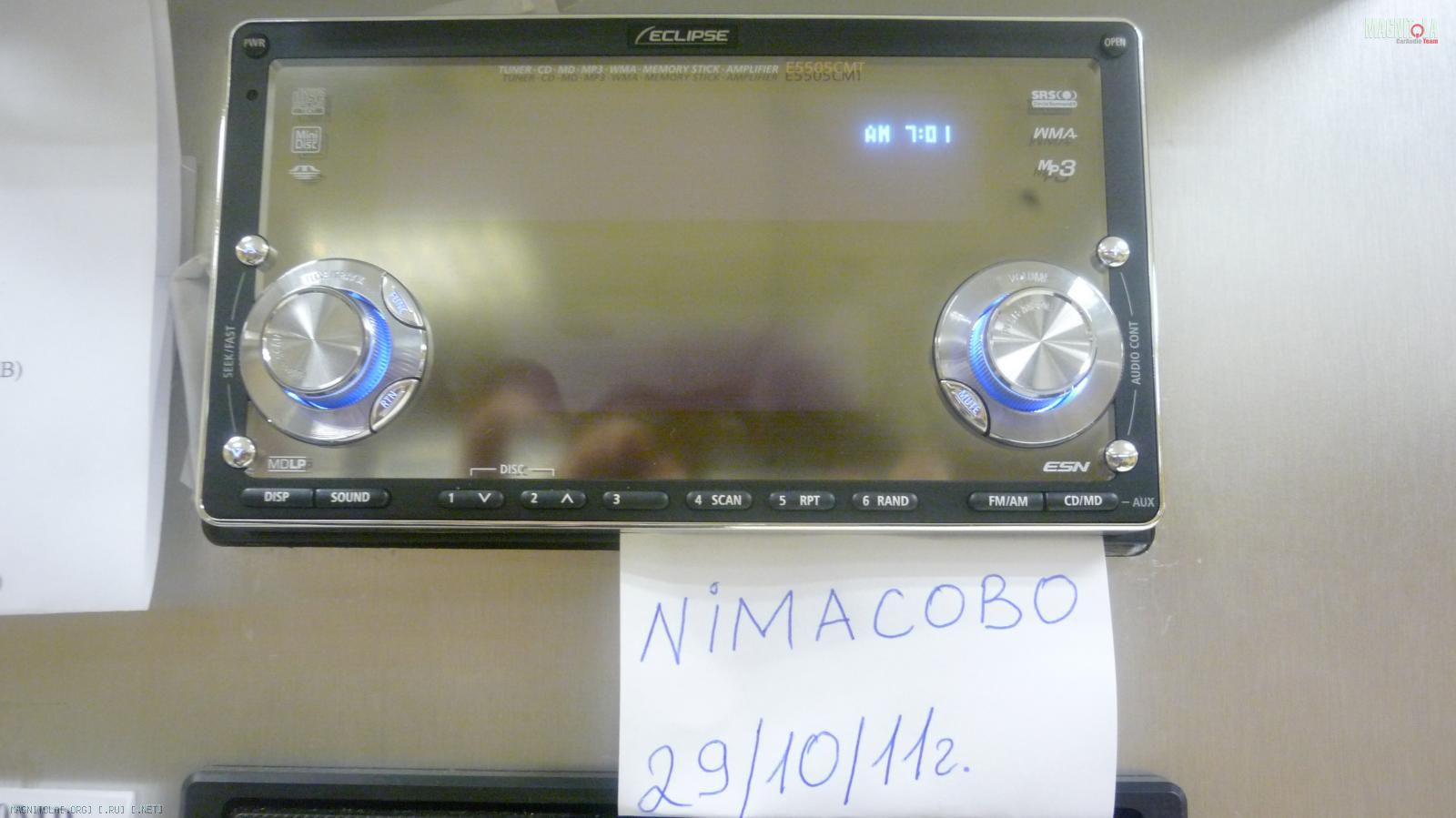

Продаю топовую "голову" от Eclipse 2005года в упаковке и полном комплекте:коробка,японская гарантия,инструкция по эксплуатации(внушительной толщины),вторая небольшая инструкция по подсоединению,карта памяти,микрофон для замера АЧХ салона(автоматическая настройка задержек,крепится во время настройки звука к водительскому подголовнику),пульт ДУ,крепёж для фиксации в панели авто,омеднённый корпус,читает МР3,WMA.Вложение 148109Вложение 148111Вложение 148113
Цена за это чудо:9000руб,находится в Москве,вышлю подробные фото по запросу,телефон для связи 89057575052 Сергей.
E5505CMT is Eclipse's all new 2005 hottest Multiple control CD/MD/MS 2-Din Receiver features a advance MOS-FET 50W?~4ch power amplifier that supports high quality sound as well as strong and powerful bass. Features an ultra stylish acrylic panel face design build-in with an ultra high-resolution Dual VF Display. Adopts 5 different kinds of background color. Through internet, you are able to upload and choose the right car interior of your car, eclipse E5505CMT will automatically adjust to the right sound field. You can also design your own motion picture and upload it to the system by Sony MemoryStick. With Pro Mode function, when the speakers' positions aren't the same, the system will automatically adjust each speaker's output allowing the sound field to stay normal.
CD-R/RW
MDLP
EasyTime Alignment
3 Way X-cover
2Mode SoundControl
ESN
Specifications
CD section
Wow flutter: Below measurement limit
Frequency characteristic: 20Hz - 20kHz
Signal-noise ratio (IHF-A): 100dB
Dynamic range: 98dB
Distortion factor ratio: 0.002% (1kHz,0dB)
MD section
Wow flutter: Below measurement limit
Frequency characteristic: 20Hz - 20kHz
Signal-noise ratio (IHF - A): 100dB
Dynamic range: 98dB
Distortion factor ratio: 0.02% (1kHz,0dB)
MS section
Frequency characteristic: 20Hz - 20kHz
Signal-noise ratio (IHF-A): 100dB
Dynamic range: 98dB
Distortion factor ratio: 0.02% (1kHz,0dB)
FM tuner section
Frequency characteristic: 30Hz - 15kHz
Practical speed: 13dBf (new IHF)
Reception frequency: 76.0 - 90.0MHz
AM tuner section
Practical speed: 20 ƒÊ V (Signal-noise ratios 20dB)
Reception frequency: 522 - 1629kHz
Audio section
Installed capacity 50W?~4 (MOS-FET)
Conformity load impedance: 4 Ħ
DSP section
Frequency characteristic: 20Hz - 20kHz
Signal-noise ratio (IHF-A): 108dB
-PEQ
PRO MODE OFF
-Adjustment center frequency: 63 - 16kHz
-Band: 7Band
-Q: 3 stages
-Tone change quantity ?}10dB (1dB step)
PRO MODE ON/3WAY
-Adjustment center frequency
-Hi=200Hz - 16kHz and MID: 63Hz - 16kHz
-Band: Hi/Mid each 5Band
-Q: 5 stages
-Tone change quantity ?}10dB (1dB step)
PRO MODE ON/2WAY 4SP+SW
-Adjustment center frequency
-Front: 63Hz - 16kHz and Rear: 63Hz - 16kHz
-Band: Front/Rear each 5Band
-Q: 5 stages
-Tone change quantity ?}10dB (1dB step)
-Time alignment
PRO MODE OFF
-Only simple time alignment
PRO MODE ON/3WAY
-Function: Hi-L/R, Mid-L/R and Low-L/R
-Time 0.0 - 10.0msec (0.10msec step)
-Level 0 - -30dB, - XXINF
PRO MODE ON/2WAY 4SP+SW
-Function: Front/Rear/Subwoofer
-Time 0.0 - 10.0msec (0.10msec step)
-Level 0 - -30dB, - XXINF
-Channel divider
PRO MODE OFF
-Cross point frequency
-63Hz - 200Hz (1/3oct step)
-Slope: 6,12,18,24dB/oct & Pass
PRO MODE ON/3WAY
-Cross point frequency: Hi-HPF: 200 - 10kHz and Mid-LPF: 200 - 10kHz / Mid-HPF: 63 - 200Hz and Low-LPF: 63 - 200Hz
-Slope: 6,12,18,24dB/oct & Pass
MODE ON/2WAY 4SP+SW
-Cross point frequency: Front-HPF: 63 - 10kHz / Rear-HPF: 63 - 10kHz / Subwoofer-LPF: 63 - 200Hz
-Slope: 6,12,18,24dB/oct & Pass
Common section
Size: 178 (W) ?~100 (H) ?~165 (D) mm
Mass: Approximately 2.7kg
Power supply voltage: 13.2V (11 - 16V)
Largest consumed electric current: 12 A
